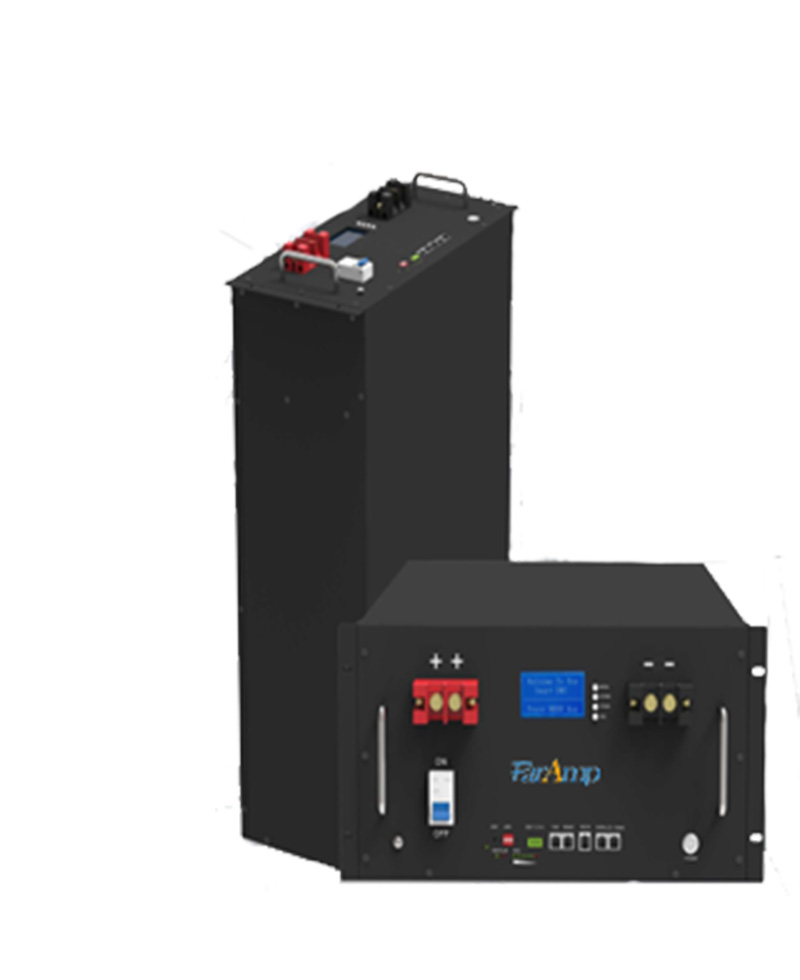

LVAmp The FARAMP Rack Series can be deployed in rack and cabinets



· LVAmp The FARAMP Rack Series can be deployed in racks and cabinets, battery capacities range from 50Ah, 100Ah to 200Ah, and flexibly meet household and commercial energy needs.
· The series uses A-grade lithium iron phosphate cells with a cycle life of over 6000 times, built-in BMS for safety protection, and supports RS485/RS232/CAN communication protocols.
· The system is compatible with various energy storage inverters on the market, catering to a diverse range of user needs.



·More than 10 years of lifetime of design ;

·Integrated modular design, small volume, high capacity;

·High ratio and long cycle life;

·Multi-stage energy consumption management;

·Support multi-module parallel, the maximum number of parallel can be 16, and the maximum capacity of parallel is 150kwh;

· Support large current charge and discharge; Maximum 1c continuous charge and discharge; ·Light and light design, can be attached to the wall installation, small floor space;

·Home appliance appearance design, simple and generous;

·Multiple communication interfaces  :RS485, RS232, CAN;

·High compatibility BMS, Can work with many well-known manufacturers inverter;

·Safety certification: TUV, CE, UN38.3, etc.


▏General Specifications


Model LVAMP4850 LVAMP48100 LVAMP48200
Nominal energy(kWh) 2.56 5.12 10.24
Nominal voltage(kWh) 51.2V
Chemistry LiFePO4
Operatingvoltagerange 40V-58.4V
Max discharge/discharge current 50A 100A 200A
ParallelsFunction Support
Communication interface RS485、RS232、CAN
Cycle life >6000Cycles
Operating temperature range Charging:0-55℃Discharging:-20-55℃
Protection level IP20
Color white/customizable
Dimension 442×440×88(2U) 442×450×132(3U) 442×450×560(4U)
Weight 29kg 47kg 80kg
Installation Wall-mounted/Floor-type
